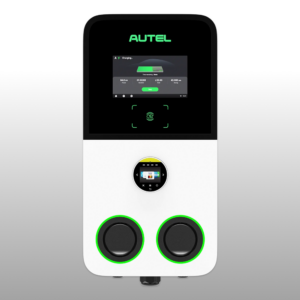

Autel MaxiCharger AC Ultra.
Introducing the Autel MaxiCharger AC Ultra – the most powerful dual-port AC charger available on the market. Perfectly balancing form and function, this charger is designed for limited space applications, making it an ideal solution for commercial charging sites.
Independently reviewed and mentioned by sources you know and trust;
![](https://intelliev.ams3.cdn.digitaloceanspaces.com/website/uploads/2024/06/buzz-ev-logo.png)
![](https://intelliev.ams3.cdn.digitaloceanspaces.com/website/uploads/2024/06/cision-pr-wire.png)
![](https://intelliev.ams3.cdn.digitaloceanspaces.com/website/uploads/2024/06/auto-guide-logo.png)
![](https://intelliev.ams3.cdn.digitaloceanspaces.com/website/uploads/2024/06/forbes-logo.png)
![](https://intelliev.ams3.cdn.digitaloceanspaces.com/website/uploads/2024/06/yahoo-finance-logo.png)
![](https://intelliev.ams3.cdn.digitaloceanspaces.com/website/uploads/2024/06/business-wire-logo.png)
General
- IP rating: IP54
- Protection: Overcurrent, overvoltage, undervoltage, integrated surge protection, PME (UK)
- Operating altitude: 2,000 m
- Operating temperature range: -40℃~+55℃
- Storage temperature range: -40℃~+55℃
- Mounting: Wall Mounted
- Dimensions (H × W × D): 625 x 320 x 170mm
Output connector
- Charging mode: Mode 3
- AC/DC: AC
- Connection: 3-Phase
- Rated power: 2*22kW/32A
- Output voltage: 400V±15%
- Output current: 2 * 22kW
- Number of outputs: 2*Sockets
- Peak efficiency: At full power ≥ 95.0%
Input connector
- Grounding system: =/- 1.0%; Build-in MID Certified meter
- Input voltage: 400V±15%, three phase
- Input frequency: 50 Hz
- Power factor: ≥0.99
- Harmonic distortion: ≤ 5%
User interface
- Screen type: 8 inch touch screen, 1280*720
- Status display: LED/LCD/APP
- Connectivity: Bluetooth, Wi-Fi, Ethernet, 4G, CAN, RS485
- Communication protocols: OCPP 1.6J (OCPP 2.0 Upgradable)
- User authentication: APP, RFID card
- User interface: OTA updates via web portal
- Software update: OTA updates via web portal
- Advertising cloud: YES
- Custom branding: NO
- Card reader: ISO 15693, ISO 14442
Certificates and standards
- Safety and compliance: IEC 61851-1, IEC 62311, IEC 62479, IEC 62955
- Certification: CE (TUV), Eichrechtskonform (Optional)
- Warranty: 36 months, warranty extension possible
General
- IP rating: IP54
- Protection: Overcurrent, overvoltage, undervoltage, integrated surge protection, PME (UK)
- Operating altitude: 2,000 m
- Operating temperature range: -40℃~+55℃
- Storage temperature range: -40℃~+55℃
- Mounting: Pedestal
- Dimensions (H × W × D): 1440 x 320 x 170mm
Output connector
- Charging mode: Mode 3
- AC/DC: AC
- Connection: 3-Phase
- Rated power: 2*22kW/32A
- Output voltage: 400V±15%
- Output current: 2 * 22kW
- Number of outputs: 2*Sockets
- Peak efficiency: At full power ≥ 95.0%
Input connector
- Grounding system: =/- 1.0%; Build-in MID Certified meter
- Input voltage: 400V±15%, three phase
- Input frequency: 50 Hz
- Power factor: ≥0.99
- Harmonic distortion: ≤ 5%
User interface
- Screen type: 8 inch touch screen, 1280*720
- Status display: LED/LCD/APP
- Connectivity: Bluetooth, Wi-Fi, Ethernet, 4G, CAN, RS485
- Communication protocols: OCPP 1.6J (OCPP 2.0 Upgradable)
- User authentication: APP, RFID card
- User interface: OTA updates via web portal
- Software update: OTA updates via web portal
- Advertising cloud: YES
- Custom branding: NO
- Card reader: ISO 15693, ISO 14442
Certificates and standards
- Safety and compliance: IEC 61851-1, IEC 62311, IEC 62479, IEC 62955
- Certification: CE (TUV), Eichrechtskonform (Optional)
- Warranty: 36 months, warranty extension possible
Fast & Efficient Charging
The Autel MaxiCharger AC Ultra redefines fast charging with its impressive 22kW per port capability, allowing it to charge two vehicles simultaneously.
This industry-leading performance translates to 75 miles of range within just 60 minutes.
Designed with ISO 15118 Plug & Charge technology, it ensures a seamless and hassle-free charging experience for all users, making it a top choice for commercial deployment.
![Autel MaxiCharger AC Ultra Autel MaxiCharger AC Ultra](https://intelliev.ams3.cdn.digitaloceanspaces.com/website/uploads/2024/07/autel-ev-workplace.png)
![Autel MaxiCharger AC Ultra Autel MaxiCharger AC Ultra](https://intelliev.ams3.cdn.digitaloceanspaces.com/website/uploads/2024/07/ac-ultra-01.png)
Best-Value Design for Commercial Use
The MaxiCharger AC Ultra is tailored for commercial applications, offering a rugged design that can be both wall-mounted and floor-mounted.
Its one-piece construction simplifies installation, reducing overall costs and delivering a faster return on investment.
The charger’s robust build ensures longevity and reliability, making it a valuable addition to any commercial charging site.
Smart Charging for Future-Proof Flexibility
Equipped with smart functionality, the MaxiCharger AC Ultra is compliant with OCPP 1.6 and 2.0.1, allowing it to adapt its power usage for optimal charging today and in the future.
This smart capability helps reduce capital investment in power capacity and operating expenses related to demand charges.
The dynamic load balancing feature further enhances efficiency, ensuring a smooth and cost-effective operation.
![Autel MaxiCharger AC Ultra Autel MaxiCharger AC Ultra](https://intelliev.ams3.cdn.digitaloceanspaces.com/website/uploads/2024/06/ac-ultra-video-thumb-02.png)
![Autel MaxiCharger AC Ultra Autel MaxiCharger AC Ultra](https://intelliev.ams3.cdn.digitaloceanspaces.com/website/uploads/2024/07/Autel_Energy_Brochure-081723_low.png)
Profitable Advertising Opportunities
The MaxiCharger AC Ultra stands out with its integrated 8-inch high-definition screen, designed to generate additional revenue through advertising.
This feature allows businesses to communicate, promote, and attract customers, turning each charging session into a profitable opportunity.
The user-friendly screen, combined with the powerful Android operating system, enhances the overall user experience while boosting the bottom line.
Advanced Features and Specifications
Built to meet high standards of safety and compliance, the MaxiCharger AC Ultra features overcurrent, overvoltage, undervoltage, and integrated surge protection. It includes an IEC 62196 Type 2 socket, a comprehensive cable management system, and supports various user authentication methods such as RFID and credit cards. With a power factor of ≥0.99 and harmonic distortion (THDi) ≤ 5%, this charger ensures efficient and reliable performance.
Offering a standard 36-month warranty, extendable for added peace of mind, the MaxiCharger AC Ultra is a smart investment for any commercial charging operation.
The Autel MaxiCharger AC Ultra is a powerful, efficient, and profitable solution for commercial electric vehicle charging needs, ensuring a superior experience for both operators and users.
![Autel MaxiCharger AC Ultra Autel MaxiCharger AC Ultra](https://intelliev.ams3.cdn.digitaloceanspaces.com/website/uploads/2024/07/ac-ultra-02.png)
Built for the toughest of environments
The MaxiCharger range is the ideal choice for any location and any solution.
Whether you're looking to install charging solutions at your workplace, parking lot, or private business, the Autel MaxiCharger is the perfect choice.
