Autel MaxiCharger DC Compact - Buillt for any Environment.

With an output of up to 47kW, this charger is ideal for businesses seeking efficient and effective charging solutions without requiring high-speed capabilities.

Independently reviewed and mentioned by sources you know and trust;

General

  • IP rating: IP54; IK10
  • Protection: Overcurrent, overvoltage, undervoltage, integrated surge protection, PME (UK)
  • Operating altitude: 2,000 m
  • Operating temperature range: -35℃~+55℃
  • Storage temperature range: -40℃~+70℃
  • Mounting: Wall Mounted
  • Dimensions (H × W × D): 1000 x 550 x 265mm

Output connector

  • Charging mode: Mode 4: CCS2
  • AC/DC: DC
  • Connection: Grid
  • Rated power: 40kW ( max. 47kW)
  • Output voltage: 150-950V
  • Output current: CCS2: 133A
  • Number of outputs: 2*CCS2
  • Peak efficiency: At full power ≥ 96.0%

Input connector

  • Grounding system: 3P, N, PE
  • Input voltage: 3-phase 400V AC±10 %
  • Input frequency: 50 Hz
  • Power factor: ≥0.99
  • Harmonic distortion: ≤ 5%

User interface

  • Screen type: 21.5 inch LCD Touch Screen
  • Status display: LED/LCD/APP
  • Connectivity: 4G, Wi-Fi, Ethernet
  • Communication protocols: OCPP 1.6J (OCPP 2.0 Upgradable)
  • User authentication: APP, RFID card
  • User interface: OTA updates via web portal
  • Software update: OTA updates via web portal
  • Advertising cloud: YES
  • Custom branding: YES
  • Card reader: ISO 15693, ISO 14443

Certificates and standards

  • Safety and compliance: IEC 61851-1; IEC 61851-23; IEC 61851-21-2; ISO 15118
  • Certification: CE, EMC Class A
  • Warranty: 24 months, warranty extension possible

General

  • IP rating: IP54; IK10
  • Protection: Overcurrent, overvoltage, undervoltage, integrated surge protection, PME (UK)
  • Operating altitude: 2,000 m
  • Operating temperature range: -35℃~+55℃
  • Storage temperature range: -40℃~+70℃
  • Mounting: Pedestal
  • Dimensions (H × W × D): 1000 x 550 x 265mm

Output connector

  • Charging mode: Mode 4: CCS2
  • AC/DC: DC
  • Connection: Grid
  • Rated power: 40kW ( max. 47kW)
  • Output voltage: 150-950V
  • Output current: CCS2: 133A
  • Number of outputs: 2*CCS2
  • Peak efficiency: At full power ≥ 96.0%

User interface

  • Screen type: 21.5 inch LCD Touch Screen
  • Status display: LED/LCD/APP
  • Connectivity: 4G, Wi-Fi, Ethernet
  • Communication protocols: OCPP 1.6J (OCPP 2.0 Upgradable)
  • User authentication: APP, RFID card
  • User interface: OTA updates via web portal
  • Software update: OTA updates via web portal
  • Advertising cloud: YES
  • Custom branding: YES
  • Card reader: ISO 15693, ISO 14443

Certificates and standards

  • Safety and compliance: IEC 61851-1; IEC 61851-23; IEC 61851-21-2; ISO 15118
  • Certification: CE, EMC Class A
  • Warranty: 24 months, warranty extension possible

Input connector

  • Grounding system: 3P, N, PE
  • Input voltage: 3-phase 400V AC±10 %
  • Input frequency: 50 Hz
  • Power factor: ≥0.99
  • Harmonic distortion: ≤ 5%

General

  • IP rating: IP54; IK10
  • Protection: Overcurrent, overvoltage, undervoltage, integrated surge protection, PME (UK)
  • Operating altitude: 2,000 m
  • Operating temperature range: -35℃~+55℃
  • Storage temperature range: -40℃~+70℃
  • Mounting: Portable Wheels
  • Dimensions (H × W × D): 1000 x 550 x 265mm

Output connector

  • Charging mode: Mode 4: CCS2
  • AC/DC: DC
  • Connection: Grid
  • Rated power: 40kW ( max. 47kW)
  • Output voltage: 150-950V
  • Output current: CCS2: 133A
  • Number of outputs: 2*CCS2
  • Peak efficiency: At full power ≥ 95.0%

Input connector

  • Grounding system: 3P, N, PE
  • Input voltage: 3-phase 400V AC±10 %
  • Input frequency: 50 Hz
  • Power factor: ≥0.99
  • Harmonic distortion: ≤ 5%

User interface

  • Screen type: 21.5 inch LCD Touch Screen
  • Status display: LED/LCD/APP
  • Connectivity: 4G, Wi-Fi, Ethernet
  • Communication protocols: OCPP 1.6J (OCPP 2.0 Upgradable)
  • User authentication: APP, RFID card
  • User interface: OTA updates via web portal
  • Software update: OTA updates via web portal
  • Advertising cloud: YES
  • Custom branding: YES
  • Card reader: ISO 15693, ISO 14443

Certificates and standards

  • Safety and compliance: IEC 61851-1; IEC 61851-23; IEC 61851-21-2; ISO 15118
  • Certification: CE, EMC Class A
  • Warranty: 24 months, warranty extension possible

Fast and Effective Charging

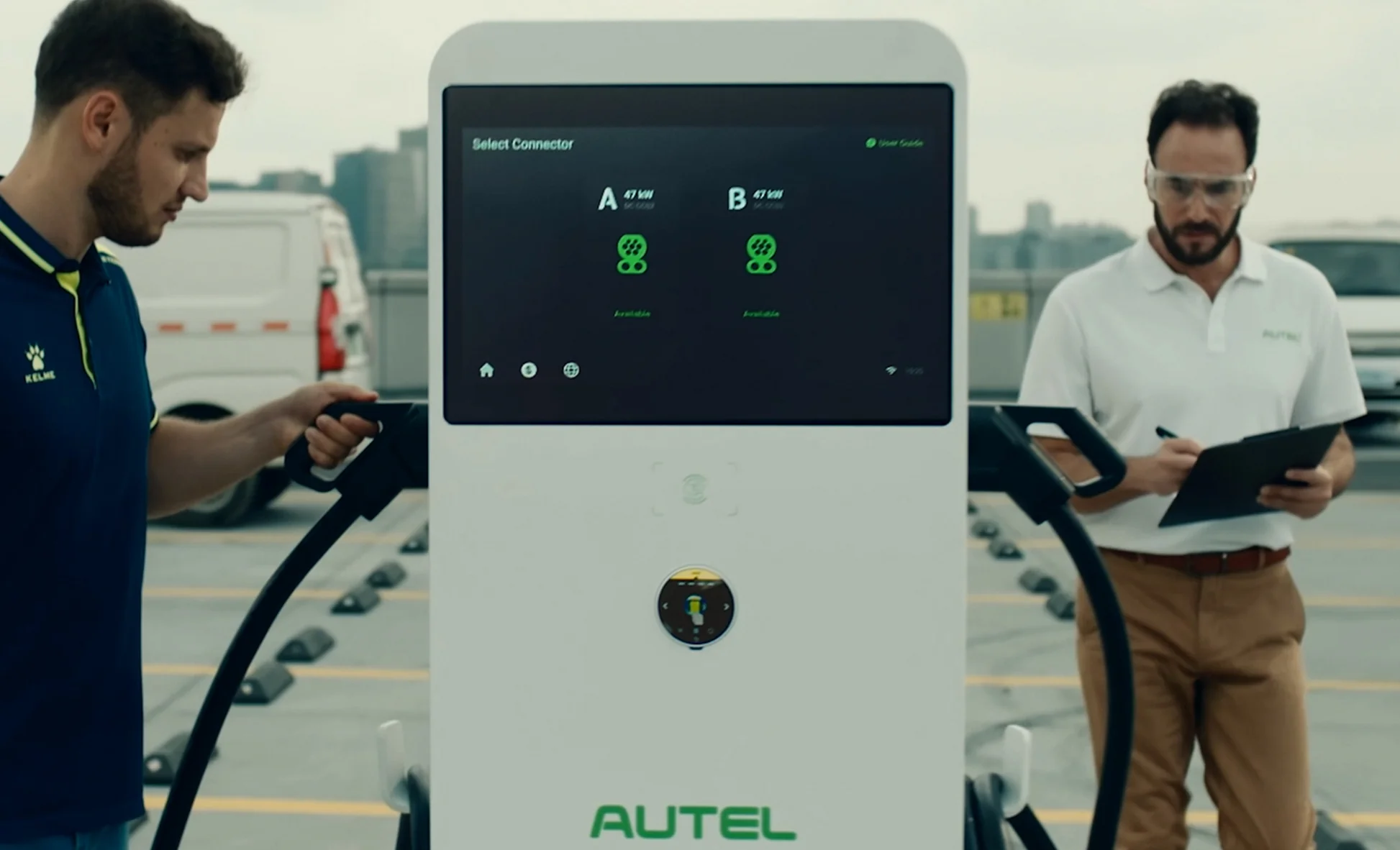

The MaxiCharger DC Compact is engineered to enhance charging efficiency, providing up to 47kW of power through its dual-port design.

This enables two vehicles to be charged simultaneously, making it an excellent choice for businesses with moderate charging needs.

A 30-minute charge delivers up to 130 km of range, ensuring that electric vehicle drivers can get back on the road quickly and conveniently.

This efficient charging capability makes the DC Compact a valuable addition to any commercial setting.

Autel MaxiCharger DC Compact
Autel MaxiCharger DC Compact

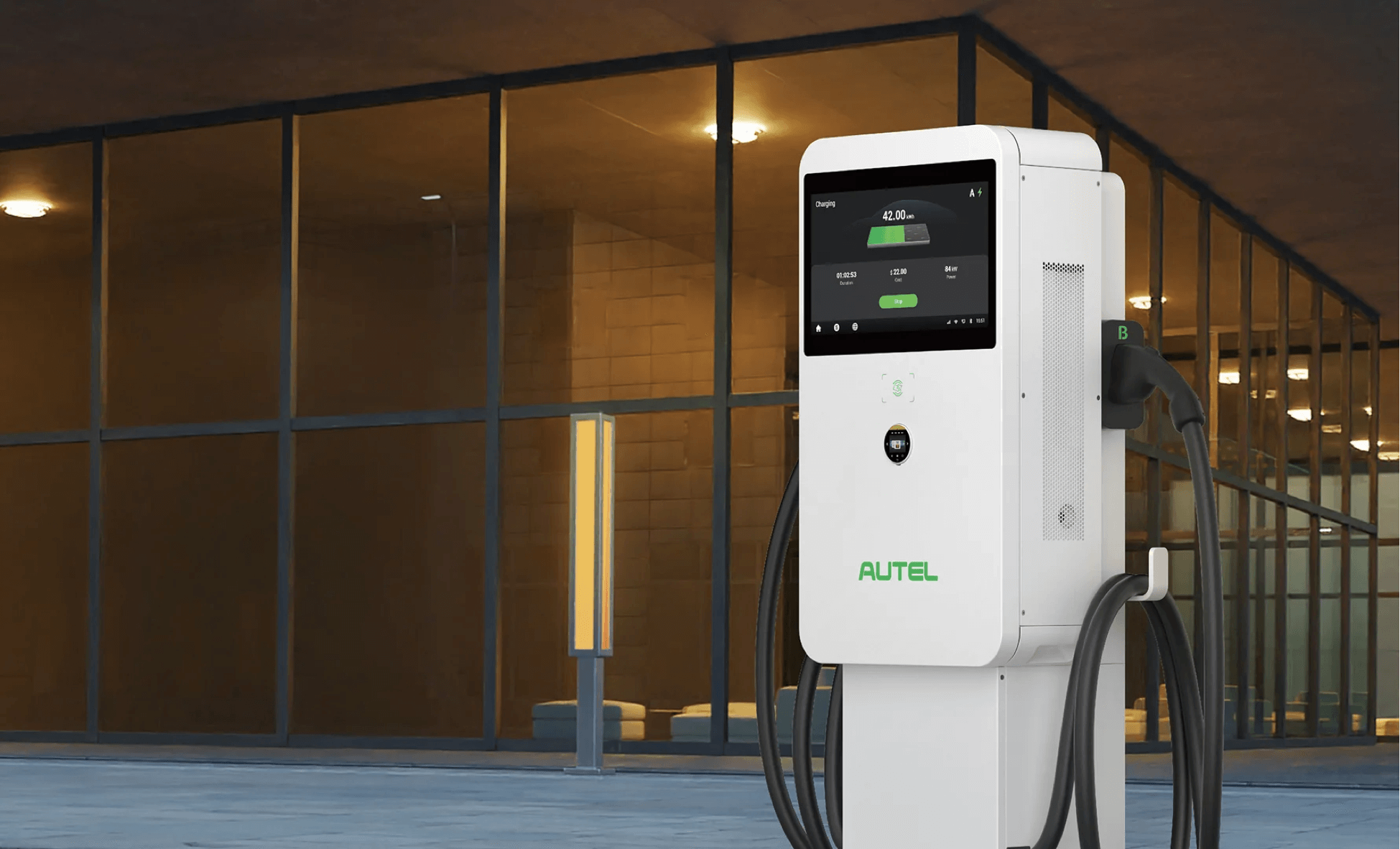

Compact Design for Any Location

Optimised for versatility, the MaxiCharger DC Compact boasts an ultra-compact design that fits seamlessly into any environment.

Its small footprint does not compromise its powerful performance, making it suitable for various locations, from urban settings to rural areas.

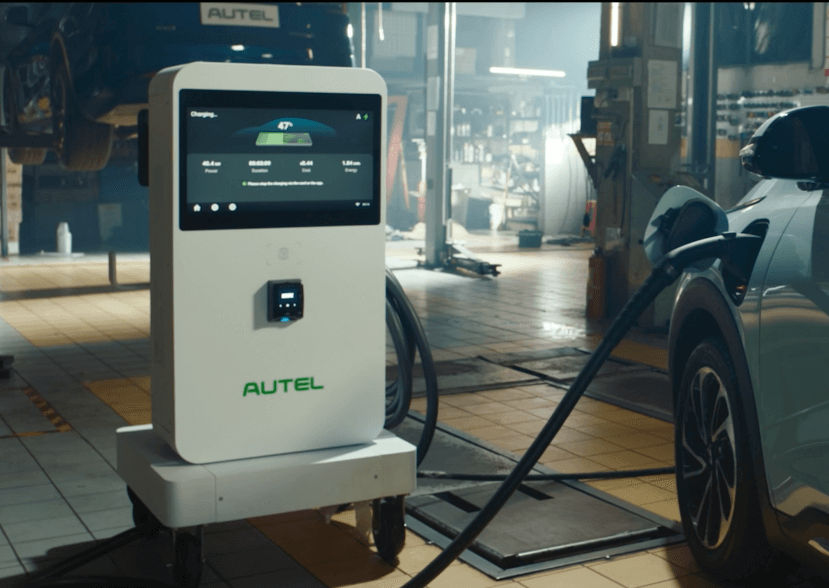

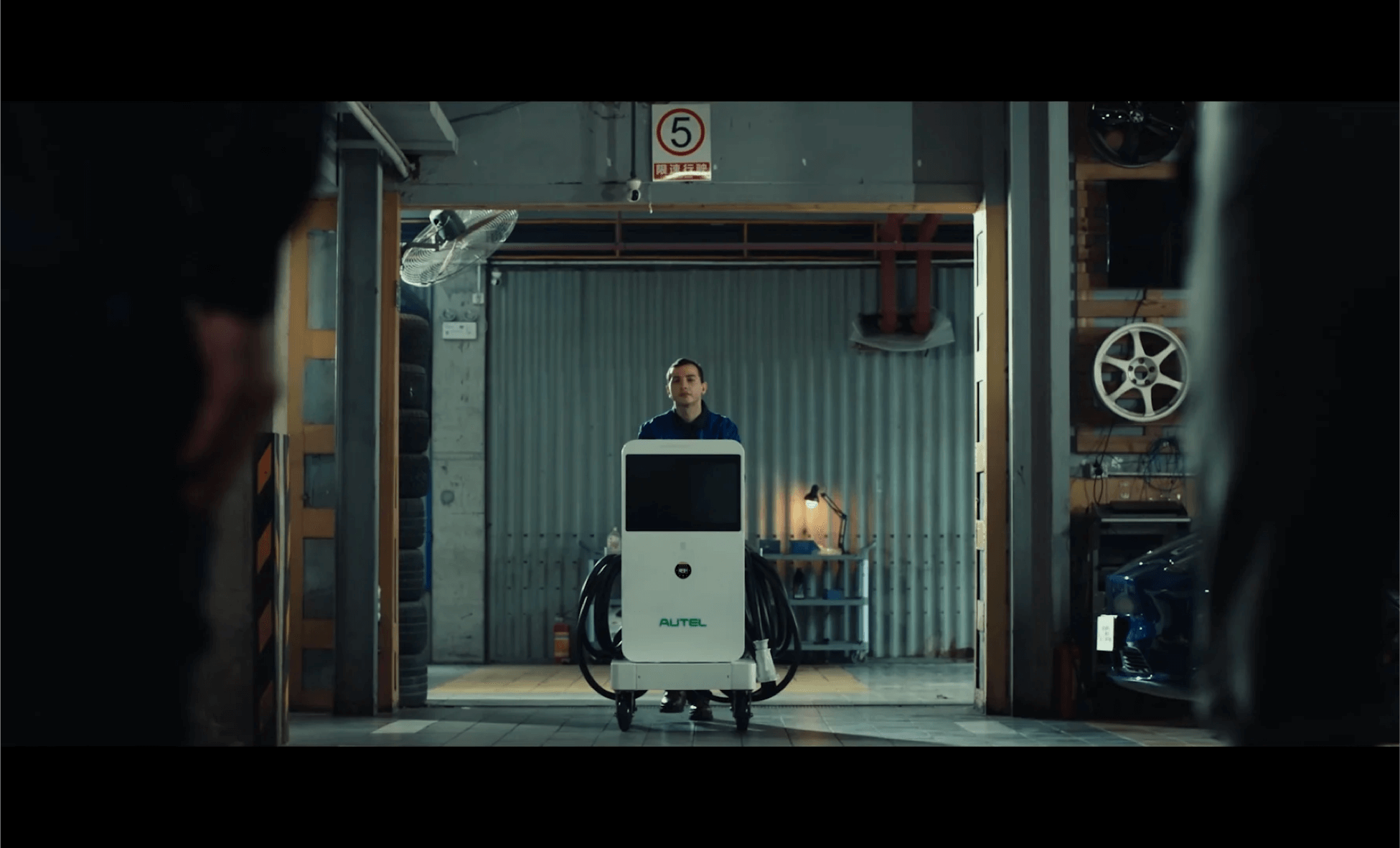

Additionally, the trolley version design provides portability, allowing businesses to adapt to changing needs and locations with ease.

Whether mounted on a pedestal, wall, or wheels, the DC Compact delivers powerful charging in a sleek, space-saving package.

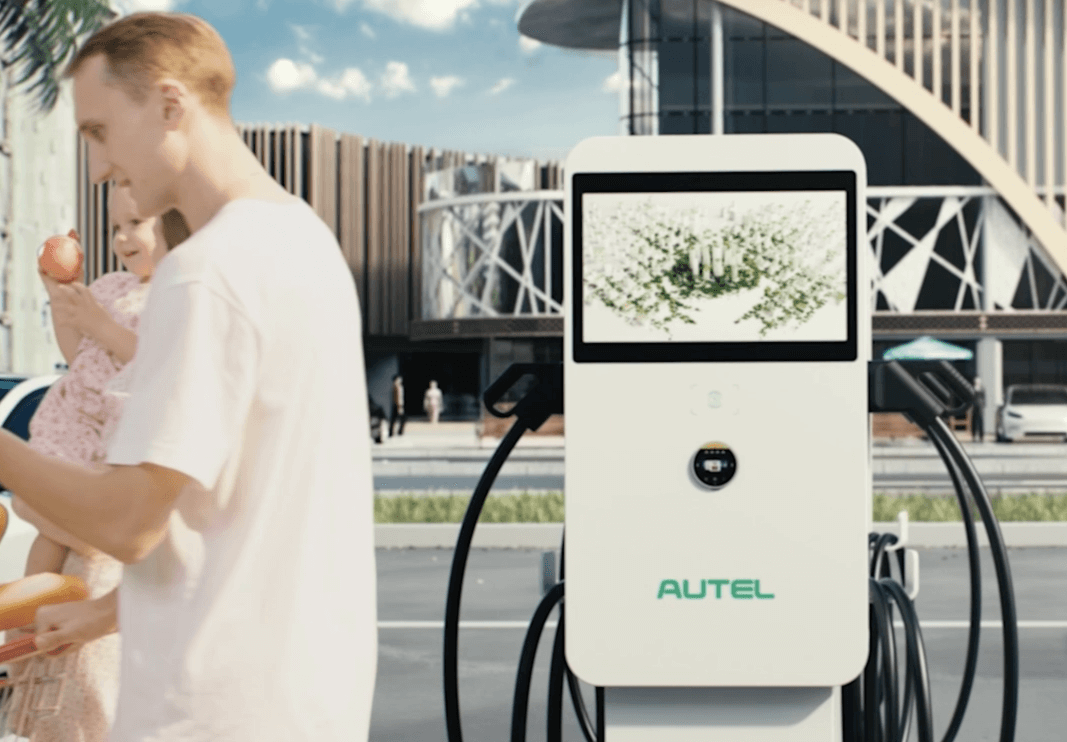

Smart Advertising and Communication Platform

Maximise your return on investment with the MaxiCharger DC Compact's smart advertising and communication platform.

Featuring a user-friendly 21.5-inch LCD touch screen powered by Android 10, this charger offers enhanced advertising placements that can help attract and engage customers.

The integrated system allows businesses to communicate, promote, and generate new revenue streams, turning each charging session into an opportunity for growth.

Autel MaxiCharger DC Compact
Autel MaxiCharger DC Compact

Advanced Specifications and Features

The MaxiCharger DC Compact is packed with advanced features designed to ensure optimal performance and reliability.

With a peak efficiency of ≥96.0%, dual CCS2 connectors, and a robust operating temperature range, this charger is built to handle demanding conditions.

It supports a wide range of communication protocols, including OCPP 1.6J (upgradable to OCPP 2.0), and offers various connectivity options such as 4G, Wi-Fi, and Ethernet.

The charger’s user interface includes a 21.5-inch touch screen and LED status display, providing an intuitive and seamless user experience.

Reliable and Safe Operation

Safety and compliance are paramount with the MaxiCharger DC Compact, which meets IEC 61851 standards and holds CE and EMC Class A certifications.

With an IP54 and IK10 rating, the charger is protected against dust, water, and physical impact, ensuring reliable operation in various environments.

The charger operates efficiently within a temperature range of -35℃ to +55℃ and can be stored between -40℃ and +70℃.

Offering a standard 24-month warranty with the option for extension, the MaxiCharger DC Compact guarantees dependable performance and peace of mind for businesses and users alike.

Autel MaxiCharger DC Compact

Built for the toughest of environments

The MaxiCharger range is the ideal choice for any location and any solution.

Whether you're looking to install charging solutions at your workplace, parking lot, or private business, the Autel MaxiCharger is the perfect choice.
