Autel MaxiCharger DC Fast for hassle-free charging.
The MaxiCharger DC Fast from Autel brings flexible and efficient electric vehicle charging to the UK. With power options ranging from 60kW to 240kW and a host of advanced features, it offers a reliable, safe, and smart solution for all your charging needs.
Independently reviewed and mentioned by sources you know and trust;
![](https://intelliev.ams3.cdn.digitaloceanspaces.com/website/uploads/2024/06/buzz-ev-logo.png)
![](https://intelliev.ams3.cdn.digitaloceanspaces.com/website/uploads/2024/06/cision-pr-wire.png)
![](https://intelliev.ams3.cdn.digitaloceanspaces.com/website/uploads/2024/06/auto-guide-logo.png)
![](https://intelliev.ams3.cdn.digitaloceanspaces.com/website/uploads/2024/06/forbes-logo.png)
![](https://intelliev.ams3.cdn.digitaloceanspaces.com/website/uploads/2024/06/yahoo-finance-logo.png)
![](https://intelliev.ams3.cdn.digitaloceanspaces.com/website/uploads/2024/06/business-wire-logo.png)
General
- Manufacturer: Autel
- Brand: MaxiCharger
- IP rating: IP54; IK10
- Protection: Overcurrent, overvoltage, undervoltage, integrated surge protection, PME (UK)
- Operating altitude: 2,000 m
- Operating temperature range: -35℃~+55℃
- Storage temperature range: -40℃~+70℃
- Mounting: Floor standing
- Dimensions (H × W × D): 1950 × 820 × 600mm
User Interface
- Screen type: 27-inch LCD touchscreen
- Status display: LED/LCD/App
- Connectivity: 4G, Wi-Fi, Ethernet
- Communication protocols: OCPP 1.6J (OCPP 2.0.1 Upgradable)
- User authentication: APP, RFID card, Credit card (optional)
- User interface: Autel charging APP; Autel Charger Cloud
- Software update: OTA updates via web portal
- Advertising cloud: YES
- Custom branding: YES
- Card reader: ISO 15693, ISO 14443
Input connector
- Grounding system: 3P, N, PE
- Input voltage: 3-phase 400V AC±15 %
- Input frequency: 50Hz
- Power factor: ≥0.99
- Harmonic distortion: (THDi) ≤ 5%
Output connector
- Charging mode: Mode 4: CCS2
- AC/DC: DC
- Connection: Gird
- Rated power: 60kW
- Output voltage: 150-1000 V
- Output current: CCS2:Standard: 200A; Optional 300A (nominal), 400 A (max)
- Number of outputs: 2*CCS2
- Peak effciency: ≥ 96%
Certification and standards
- Safety and compliance: EN 61851-1, EN 61851-23, EN 61851-21-2, ISO 15118 Autostart
- Certification: CE, EMC Class A, Eichrecchtskonform (Optional)
- Warranty: 24 months, warranty extension possible
General
- Manufacturer: Autel
- Brand: MaxiCharger
- IP rating: IP54; IK10
- Protection: Overcurrent, overvoltage, undervoltage, integrated surge protection, PME (UK)
- Operating altitude: 2,000 m
- Operating temperature range: -35℃~+55℃
- Storage temperature range: -40℃~+70℃
- Mounting: Floor standing
- Dimensions (H × W × D): 1950 × 820 × 600mm
User Interface
- Screen type: 27-inch LCD touchscreen
- Status display: LED/LCD/App
- Connectivity: 4G, Wi-Fi, Ethernet
- Communication protocols: OCPP 1.6J (OCPP 2.0.1 Upgradable)
- User authentication: APP, RFID card, Credit card (optional)
- User interface: Autel charging APP; Autel Charger Cloud
- Software update: OTA updates via web portal
- Advertising cloud: YES
- Custom branding: YES
- Card reader: ISO 15693, ISO 14443
Input connector
- Grounding system: 3P, N, PE
- Input voltage: 3-phase 400V AC±15 %
- Input frequency: 50Hz
- Power factor: ≥0.99
- Harmonic distortion: (THDi) ≤ 5%
Output connector
- Charging mode: Mode 4: CCS2
- AC/DC: DC
- Connection: Gird
- Rated power: 160kW
- Output voltage: 150-1000 V
- Output current: CCS2:Standard: 200A; Optional 300A (nominal), 400 A (max)
- Number of outputs: 2*CCS2
- Peak effciency: ≥ 96%
Certification and standards
- Safety and compliance: EN 61851-1, EN 61851-23, EN 61851-21-2, ISO 15118 Autostart
- Certification: CE, EMC Class A, Eichrecchtskonform (Optional)
- Warranty: 24 months, warranty extension possible
General
- Manufacturer: Autel
- Brand: MaxiCharger
- IP rating: IP54; IK10
- Protection: Overcurrent, overvoltage, undervoltage, integrated surge protection, PME (UK)
- Operating altitude: 2,000 m
- Operating temperature range: -35℃~+55℃
- Storage temperature range: -40℃~+70℃
- Mounting: Floor standing
- Dimensions (H × W × D): 1950 × 820 × 700mm
User Interface
- Screen type: 27-inch LCD touchscreen
- Status display: LED/LCD/App
- Connectivity: 4G, Wi-Fi, Ethernet
- Communication protocols: OCPP 1.6J (OCPP 2.0.1 Upgradable)
- User authentication: APP, RFID card, Credit card (optional)
- User interface: Autel charging APP; Autel Charger Cloud
- Software update: OTA updates via web portal
- Advertising cloud: YES
- Custom branding: YES
- Card reader: ISO 15693, ISO 14443
Input connector
- Grounding system: 3P, N, PE
- Input voltage: 3-phase 400V AC±15 %
- Input frequency: 50Hz
- Power factor: ≥0.99
- Harmonic distortion: (THDi) ≤ 5%
Output connector
- Charging mode: Mode 4: CCS2
- AC/DC: DC
- Connection: Gird
- Rated power: 240kW
- Output voltage: 150-1000 V
- Output current: CCS2:Standard: 200A; Optional 300A (nominal), 400 A (max)
- Number of outputs: 2*CCS2
- Peak effciency: ≥ 96%
Certification and standards
- Safety and compliance: EN 61851-1, EN 61851-23, EN 61851-21-2, ISO 15118 Autostart
- Certification: CE, EMC Class A, Eichrecchtskonform (Optional)
- Warranty: 24 months, warranty extension possible
Flexible Charging Port Options
The MaxiCharger DC Fast is designed to accommodate diverse charging needs with its flexible port options.
Available with 2x CCS connectors or a combination of 1x CCS and 1x CHAdeMO connector, this charger ensures compatibility with a wide range of electric vehicles.
This flexibility makes it an ideal choice for various locations, from public charging stations to fleet depots, ensuring that all types of EVs can be efficiently charged.
![Autel MaxiCharger DC Fast Autel MaxiCharger DC Fast](https://intelliev.ams3.cdn.digitaloceanspaces.com/website/uploads/2024/07/autel-workplace-charging-main-dc.png)

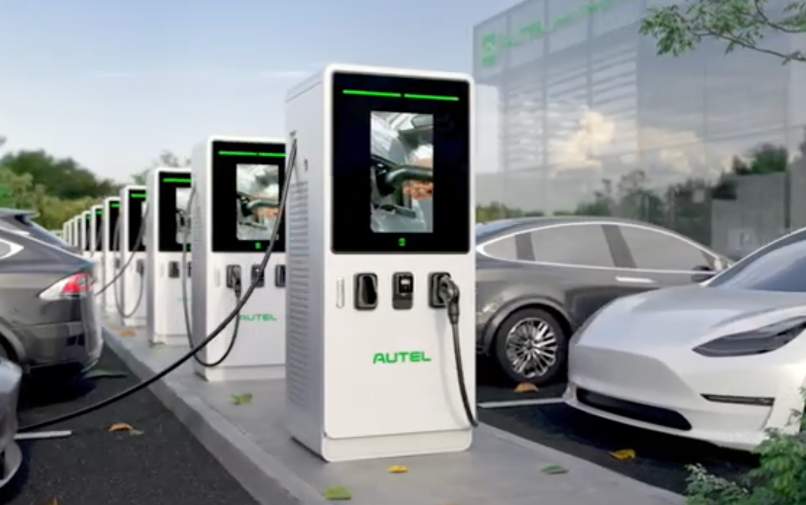

![Autel MaxiCharger DC Fast Autel MaxiCharger DC Fast](https://intelliev.ams3.cdn.digitaloceanspaces.com/website/uploads/2024/06/dc-fast-poster-05.png)
Safe and Reliable
Safety and reliability are at the core of the MaxiCharger DC Fast. Certified to UL and CSA standards and NEMA 3R rated for outdoor applications, it guarantees robust performance in any environment.
The charger features advanced safety technologies, including Type A RCD and continuous insulation monitoring, ensuring a secure charging experience.
With a standard two-year warranty, extendable up to five years, the MaxiCharger DC Fast provides peace of mind and long-term reliability.
Smart Cloud Portal & OCPP Capability
The MaxiCharger DC Fast offers smart management capabilities through its cloud portal and OCPP compatibility.
Site hosts can control the charger remotely, collect revenue, and manage any OCPP compatible chargers using the Autel cloud portal.
This feature simplifies operations, reduces costs, and enhances the user experience.
Additionally, remote updates and diagnostics supported by Autel’s Charge Cloud and App SaaS system ensure the charger remains up-to-date and operational with minimal intervention.
![Autel MaxiCharger DC Fast Autel MaxiCharger DC Fast](https://intelliev.ams3.cdn.digitaloceanspaces.com/website/uploads/2024/07/autel-ev-station-01.png)
![Autel MaxiCharger DC Fast Autel MaxiCharger DC Fast](https://intelliev.ams3.cdn.digitaloceanspaces.com/website/uploads/2024/06/autel-dc-fast-gallery-03.png)
Dynamic Load Balancing & Fast Charging
With up to 240kW of DC charging power, the MaxiCharger DC Fast can replenish up to 62 miles of range in just five minutes.
Its dynamic load balancing feature adapts to your infrastructure, preventing over-current and allowing more vehicles to be charged simultaneously.
This advanced charging management system boosts revenue potential and optimises energy distribution, making it perfect for high-traffic areas and busy fleet operations.
Convenient and Customisable Design
The MaxiCharger DC Fast boasts a rugged and reliable design, capable of operating in the harshest environments.
Its innovative housing and component protection ensure durability, while the modular power module design enables easy on-site installation and maintenance.
The charger can be customised to meet specific customer needs, with options for different power configurations, cable lengths, logos, and colours.
Additionally, a 27-inch touchscreen display and advertising screen offer custom branding and revenue-generating opportunities, enhancing the overall value of the charging station.
![Autel MaxiCharger DC Fast Autel MaxiCharger DC Fast](https://intelliev.ams3.cdn.digitaloceanspaces.com/website/uploads/2024/07/dc-open-01.png)
Built for the toughest of environments
The MaxiCharger range is the ideal choice for any location and any solution.
Whether you're looking to install charging solutions at your workplace, parking lot, or private business, the Autel MaxiCharger is the perfect choice.
