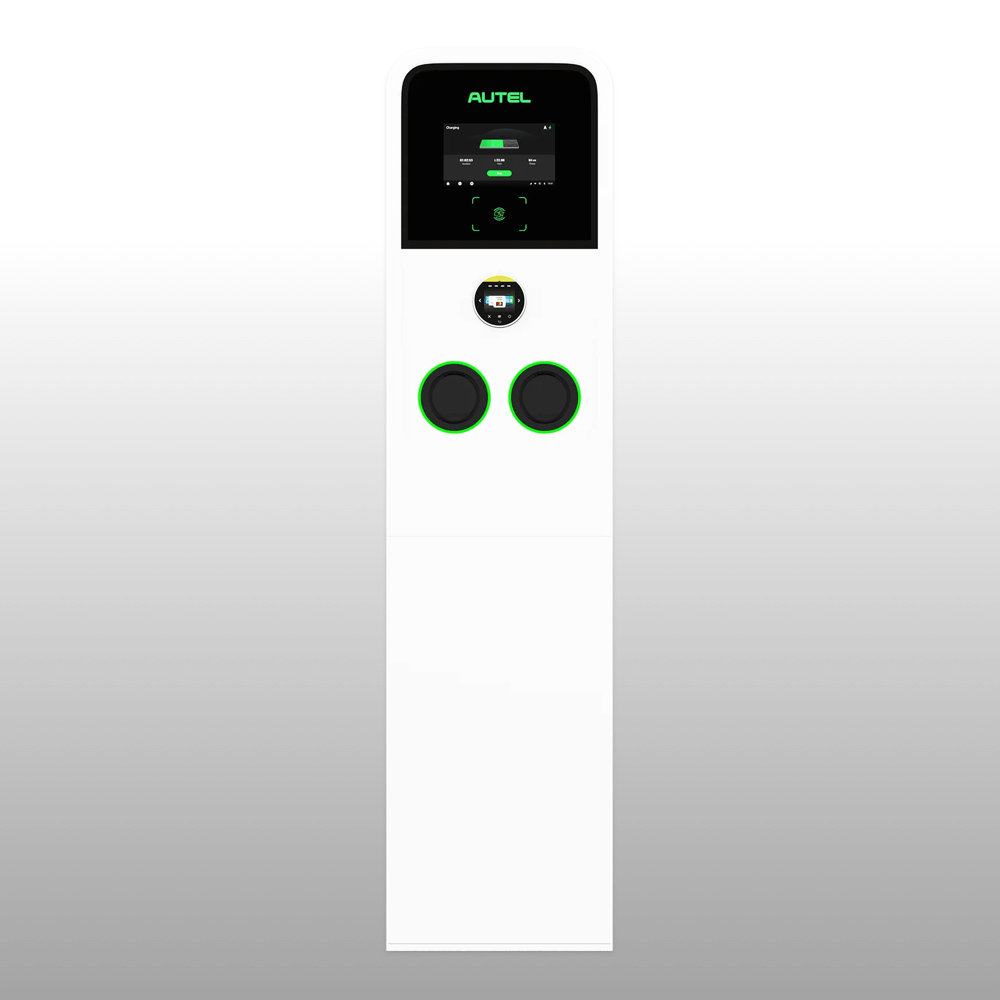

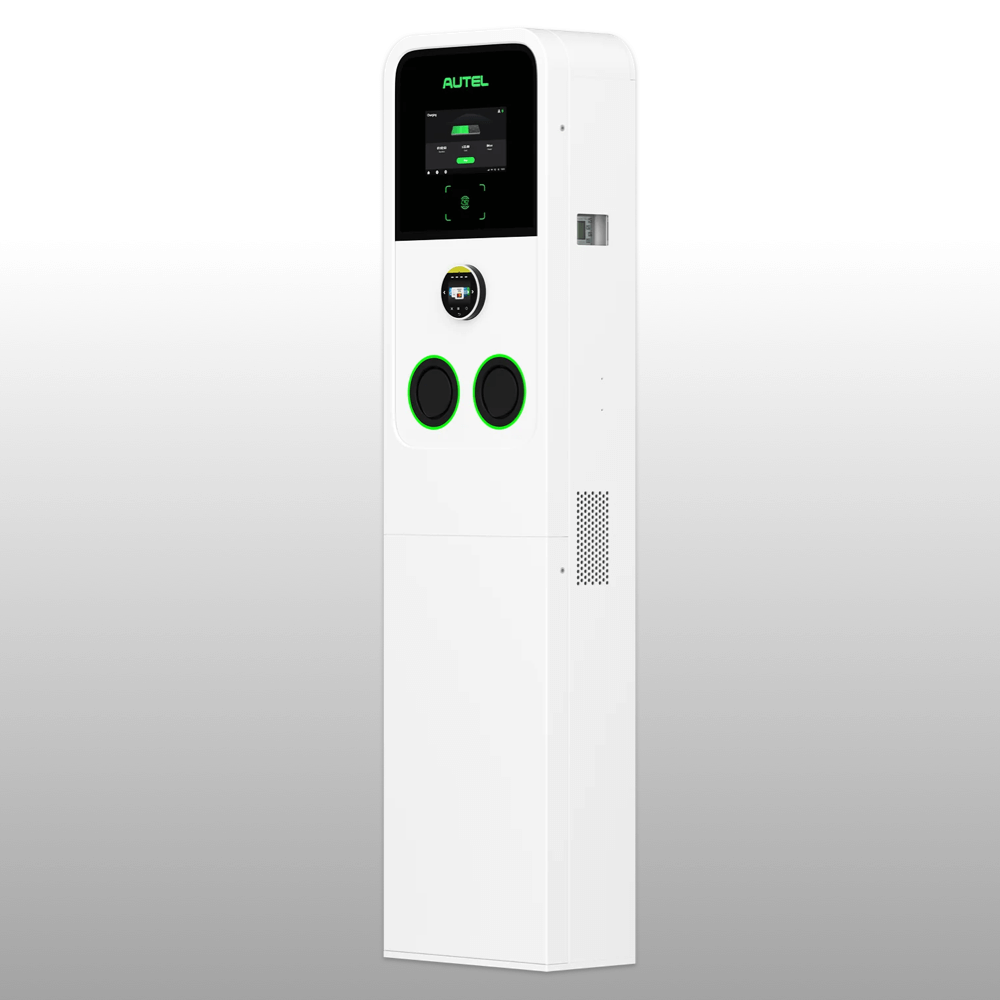

Autel MaxiCharger AC Ultra Dual 22kW - Pedestal

Autel MaxiCharger AC Ultra Dual 22kW - Pedestal

Product information

RRP: £3,499.00 excl. VAT

Rated 4.9/5 from 3 reviews

Product Description

Introducing the Autel MaxiCharger 22kW AC Ultra Pedestal – the epitome of AC charging technology, providing an impressive 22 kilowatts of power. This charger can simultaneously charge two vehicles at 22 kilowatts each, making it the ideal solution for businesses looking to offer a premium EV charging experience to employees, customers, and visitors.

The MaxiCharger AC Ultra adheres to OCPP standards and features an elegant eight-inch LCD touchscreen, a durable IP54-rated enclosure, and an RFID card reader. It also comes with a variety of customisable options, including a credit card reader, a pedestal, energy meters, and the ability to brand the charger with your logo.

Furthermore, the MaxiCharger AC Ultra unlocks numerous revenue opportunities through Autel's cloud-based portal. Businesses can provide tailored charging rate discounts to different customer profiles, such as first-time users and loyal patrons, and categorise drivers into segments like taxi or ride-hailing services. The charger also supports the monetisation of programmatic advertising, turning each charging session into a potential revenue stream.

The MaxiCharger AC Ultra's versatility is unmatched. It is perfect for fleets, schools, apartment complexes, parking lots, and housing associations. The Autel Cloud allows for seamless management of driver groups, charging schedules, and the flexibility to offer free, discounted, or paid charging services.

Enhance your EV charging infrastructure with the MaxiCharger AC Ultra – where innovation meets profitability.

Optional Payter/Nayax payment system: £645

Reviews

4.9 out of 5 stars

Rated 4.9/5 from 3 reviews

Share your thoughts

If you’ve used this product, share your thoughts with other customers

Write a review

Recent reviews

Aubery Jones

5 out of 5 stars

The Autel MaxiCharger 22kW AC Ultra Pedestal has truly transformed our business’s EV charging capabilities. The ability to simultaneously charge two vehicles at 22 kilowatts each has been a game-changer for our parking facility. Our customers appreciate the quick charging times, and we’ve seen a notable increase in repeat visits. The sleek eight-inch LCD touchscreen and durable IP54-rated enclosure add a touch of sophistication, while the RFID card reader ensures easy access. The customizable options, including branding and a credit card reader, have allowed us to tailor the charger to our specific needs.

James Skinner

5 out of 5 stars

As a property manager for a large apartment complex, the MaxiCharger AC Ultra has been an outstanding addition to our amenities. Our residents love the convenience of fast, simultaneous charging for their EVs. The Autel Cloud portal has made managing charging schedules and offering different rates incredibly simple. Plus, the ability to segment drivers and monetize advertising has opened up new revenue streams for us. The charger’s robust design and customizable features, like the energy meters and branding options, have met all our expectations. It’s an investment that has paid off in spades.

Dan Couch

4.7 out of 5 stars

Implementing the MaxiCharger AC Ultra in our school’s parking lot has been a fantastic decision. The charger’s compliance with OCPP standards, elegant touchscreen, and durable enclosure provide reliability and ease of use. Our staff and visitors appreciate the fast charging capabilities, and we’ve even set up tailored discounts for different user groups. The optional Payter/Nayax payment system was worth the additional cost, making transactions seamless. The versatility of this charger is unmatched, and the ability to manage everything through the Autel Cloud has streamlined our operations. We couldn’t be happier with this product.

Datasheets

Product Videos

MaxiCharger AC Ultra – Introduction

MaxiCharger AC Ultra – Demonstration

Product Comparison

General

  • IP rating: IP54
  • Protection: Overcurrent, overvoltage, undervoltage, integrated surge protection, PME (UK)
  • Operating altitude: 2,000 m
  • Operating temperature range: -40℃~+55℃
  • Storage temperature range: -40℃~+55℃
  • Mounting: Pedestal
  • Dimensions (H × W × D): 1440 x 320 x 170mm

Output connector

  • Charging mode: Mode 3
  • AC/DC: AC
  • Connection: 3-Phase
  • Rated power: 2*22kW/32A
  • Output voltage: 400V±15%
  • Output current: 2 * 22kW
  • Number of outputs: 2*Sockets
  • Peak efficiency: At full power ≥ 95.0%

Input connector

  • Grounding system: =/- 1.0%; Build-in MID Certified meter
  • Input voltage: 400V±15%, three phase
  • Input frequency: 50 Hz
  • Power factor: ≥0.99
  • Harmonic distortion: ≤ 5%

User interface

  • Screen type: 8 inch touch screen, 1280*720
  • Status display: LED/LCD/APP
  • Connectivity: Bluetooth, Wi-Fi, Ethernet, 4G, CAN, RS485
  • Communication protocols: OCPP 1.6J (OCPP 2.0 Upgradable)
  • User authentication: APP, RFID card
  • User interface: OTA updates via web portal
  • Software update: OTA updates via web portal
  • Advertising cloud: YES
  • Custom branding: NO
  • Card reader: ISO 15693, ISO 14442

Certificates and standards

  • Safety and compliance: IEC 61851-1, IEC 62311, IEC 62479, IEC 62955
  • Certification: CE (TUV), Eichrechtskonform (Optional)
  • Warranty: 36 months, warranty extension possible

General

  • IP rating: IP54
  • Protection: Overcurrent, overvoltage, undervoltage, integrated surge protection, PME (UK)
  • Operating altitude: 2,000 m
  • Operating temperature range: -40℃~+55℃
  • Storage temperature range: -40℃~+55℃
  • Mounting: Wall Mounted
  • Dimensions (H × W × D): 625 x 320 x 170mm

Output connector

  • Charging mode: Mode 3
  • AC/DC: AC
  • Connection: 3-Phase
  • Rated power: 2*22kW/32A
  • Output voltage: 400V±15%
  • Output current: 2 * 22kW
  • Number of outputs: 2*Sockets
  • Peak efficiency: At full power ≥ 95.0%

Input connector

  • Grounding system: =/- 1.0%; Build-in MID Certified meter
  • Input voltage: 400V±15%, three phase
  • Input frequency: 50 Hz
  • Power factor: ≥0.99
  • Harmonic distortion: ≤ 5%

User interface

  • Screen type: 8 inch touch screen, 1280*720
  • Status display: LED/LCD/APP
  • Connectivity: Bluetooth, Wi-Fi, Ethernet, 4G, CAN, RS485
  • Communication protocols: OCPP 1.6J (OCPP 2.0 Upgradable)
  • User authentication: APP, RFID card
  • User interface: OTA updates via web portal
  • Software update: OTA updates via web portal
  • Advertising cloud: YES
  • Custom branding: NO
  • Card reader: ISO 15693, ISO 14442

Certificates and standards

  • Safety and compliance: IEC 61851-1, IEC 62311, IEC 62479, IEC 62955
  • Certification: CE (TUV), Eichrechtskonform (Optional)
  • Warranty: 36 months, warranty extension possible

General

  • IP rating: IP54; IK10
  • Protection: Overcurrent, overvoltage, undervoltage, integrated surge protection, PME (UK)
  • Operating altitude: 2,000 m
  • Operating temperature range: -35℃~+55℃
  • Storage temperature range: -40℃~+70℃
  • Mounting: Portable Wheels
  • Dimensions (H × W × D): 1000 x 550 x 265mm

Output connector

  • Charging mode: Mode 4: CCS2
  • AC/DC: DC
  • Connection: Grid
  • Rated power: 40kW ( max. 47kW)
  • Output voltage: 150-950V
  • Output current: CCS2: 133A
  • Number of outputs: 2*CCS2
  • Peak efficiency: At full power ≥ 95.0%

Input connector

  • Grounding system: 3P, N, PE
  • Input voltage: 3-phase 400V AC±10 %
  • Input frequency: 50 Hz
  • Power factor: ≥0.99
  • Harmonic distortion: ≤ 5%

User interface

  • Screen type: 21.5 inch LCD Touch Screen
  • Status display: LED/LCD/APP
  • Connectivity: 4G, Wi-Fi, Ethernet
  • Communication protocols: OCPP 1.6J (OCPP 2.0 Upgradable)
  • User authentication: APP, RFID card
  • User interface: OTA updates via web portal
  • Software update: OTA updates via web portal
  • Advertising cloud: YES
  • Custom branding: YES
  • Card reader: ISO 15693, ISO 14443

Certificates and standards

  • Safety and compliance: IEC 61851-1; IEC 61851-23; IEC 61851-21-2; ISO 15118
  • Certification: CE, EMC Class A
  • Warranty: 24 months, warranty extension possible

Product Features

Power Output
  • Provides 22 kilowatts of power.
  • Can simultaneously charge two vehicles at 22 kilowatts each.
Compliance and Design
  • Adheres to OCPP standards.
  • Features an eight-inch LCD touchscreen.
  • Enclosure is IP54-rated.
  • Includes an RFID card reader.
Customization Options
  • Credit card reader.
  • Pedestal.
  • Energy meters.
  • Branding with your logo.
Revenue Opportunities
  • Cloud-based portal for revenue management.
  • Tailored charging rate discounts for different customer profiles.
  • Driver segmentation (e.g., taxi, ride-hailing services).
  • Monetisation of programmatic advertising.
Optional Payment System
  • Suitable for fleets, schools, apartment complexes, parking lots, and housing associations.
  • Autel Cloud enables seamless management of driver groups and charging schedules.
  • Flexibility to offer free, discounted, or paid charging services.
Optional Add-Ons
  • Payter/Nayax payment system

Product Specification

Below you will find an in-depth specification. Alternatively download a more detailed specification below.

Download Specifications

General

IP rating
IP54
Protection
Overcurrent, overvoltage, undervoltage, integrated surge protection, PME (UK)
Operating altitude
2,000 m
Operating temperature range
-40℃~+55℃
Storage temperature range
-40℃~+55℃
Mounting
Pedestal
Dimensions (H × W × D)
1440 x 320 x 170mm

Output connector

Charging mode
Mode 3
AC/DC
AC
Connection
3-Phase
Rated power
2*22kW/32A
Output voltage
400V±15%
Output current
2 * 22kW
Number of outputs
2*Sockets
Peak efficiency
At full power ≥ 95.0%

Input connector

Grounding system
=/- 1.0%; Build-in MID Certified meter
Input voltage
400V±15%, three phase
Input frequency
50 Hz
Power factor
≥0.99
Harmonic distortion
≤ 5%

User interface

Screen type
8 inch touch screen, 1280*720
Status display
LED/LCD/APP
Connectivity
Bluetooth, Wi-Fi, Ethernet, 4G, CAN, RS485
Communication protocols
OCPP 1.6J (OCPP 2.0 Upgradable)
User authentication
APP, RFID card
User interface
OTA updates via web portal
Software update
OTA updates via web portal
Advertising cloud
YES
Custom branding
NO
Card reader
ISO 15693, ISO 14442

Certificates and standards

Safety and compliance
IEC 61851-1, IEC 62311, IEC 62479, IEC 62955
Certification
CE (TUV), Eichrechtskonform (Optional)
Warranty
36 months, warranty extension possible
