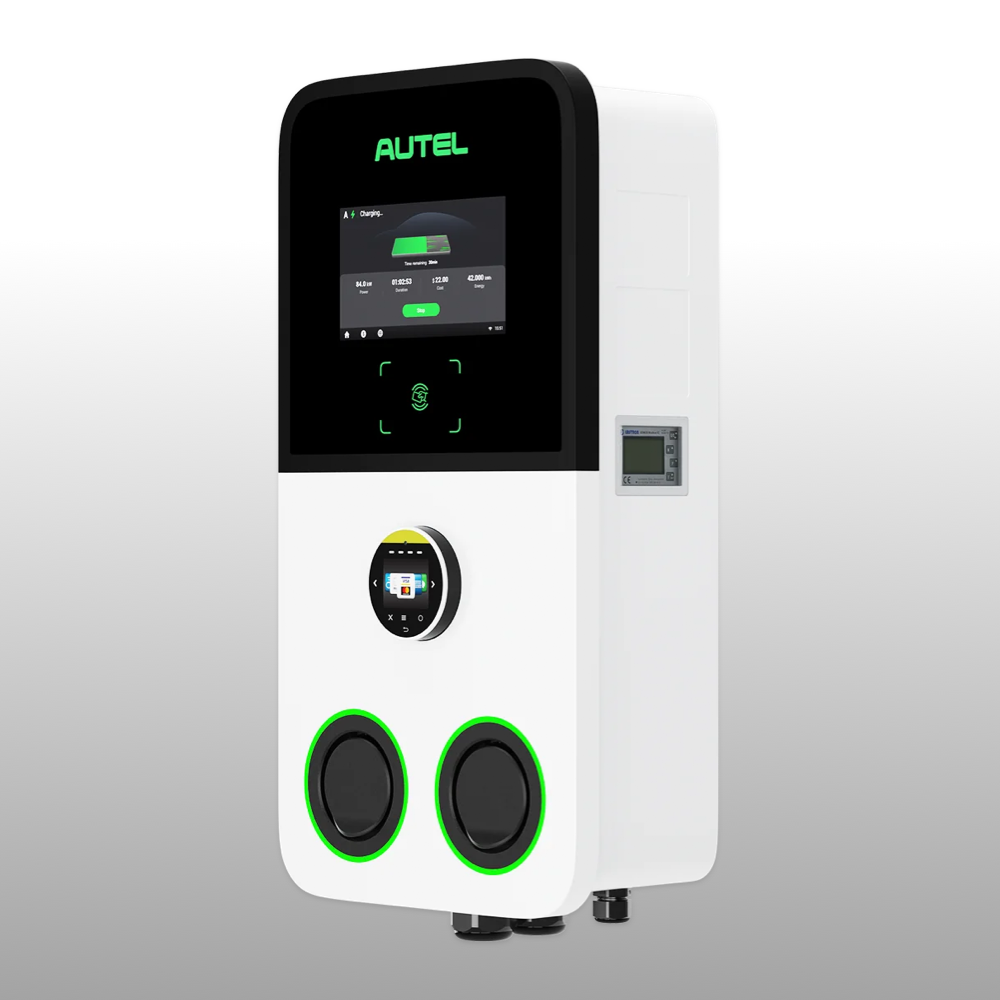

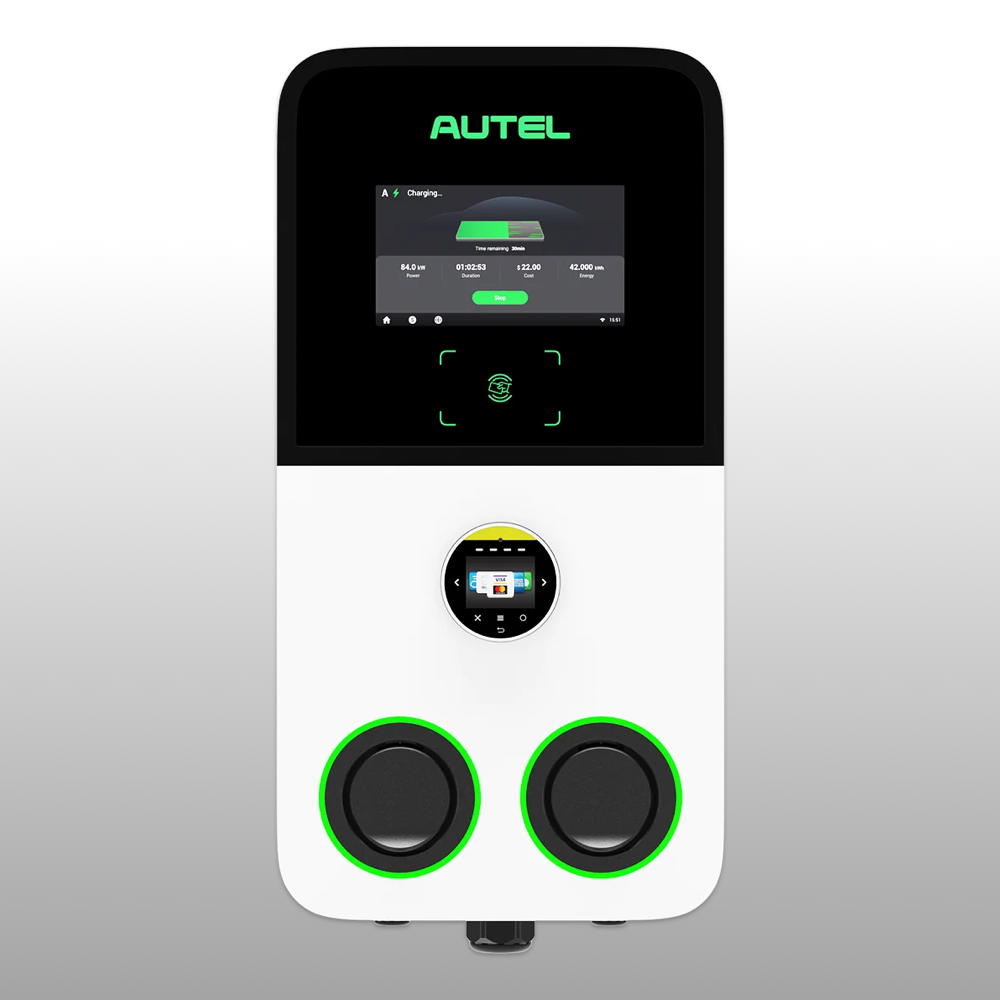

Autel MaxiCharger AC Ultra Dual 22kW - Wall Mounted
Product information
RRP: £3,200.00 excl. VAT
The following price is for the general public. In order to view installer pricing, please create an account.
Product Description
Introducing the Autel MaxiCharger AC Ultra – the pinnacle of AC charging technology, delivering a remarkable 22 kilowatts of power. With the capability to charge two vehicles simultaneously at a swift 22 kilowatts each, it’s the ultimate choice for businesses aiming to offer a top-tier EV charging experience for employees, customers, and visitors.
The MaxiCharger AC Ultra is fully compliant with OCPP standards and boasts a sleek eight-inch LCD touchscreen, a robust IP54-rated enclosure, and an RFID card reader. Plus, it offers a host of customisable options, such as a credit card reader, a pedestal, energy meters, and even the ability to brand the charger with your own logo.
But that's not all – the MaxiCharger AC Ultra opens up a wealth of revenue opportunities via Autel's cloud-based portal. Businesses can offer tailored charge rate discounts to different customer profiles, from first-time users to loyal patrons, and segment drivers into categories like taxi or ride-hailing services. Moreover, the charger supports the monetisation of programmatic advertising, turning each charge into a revenue stream.
The versatility of the MaxiCharger AC Ultra knows no bounds. Whether for fleets, schools, apartment complexes, parking lots, or housing associations, the Autel Cloud enables seamless management of driver groups, charging schedules, and the flexibility to offer free, discounted, or paid charging services.
Upgrade your EV charging infrastructure with the MaxiCharger AC Ultra – where innovation meets profitability.
Optional Payter/Nayax payment system £645.
Reviews
4.95 out of 5 stars
Rated 4.95/5 from 6 reviews
Share your thoughts
If you’ve used this product, share your thoughts with other customers
Write a reviewRecent reviews
Amy Griffin
5 out of 5 stars
I am extremely satisfied with the Autel MaxiCharger 22kw AC. The installation process was straightforward, and the unit works flawlessly. The charging speed is impressive, and I love the sleek design. The app integration makes it easy to monitor and control the charging process from my phone. Highly recommend this charger to anyone looking for a reliable and efficient home charging solution!
James Warrington
5 out of 5 stars
The Autel MaxiCharger 22kw AC has exceeded my expectations. It’s powerful, efficient, and user-friendly. The charging time is significantly reduced compared to my previous charger. The build quality is excellent, and it feels very durable. The customer support from Autel has also been fantastic, providing quick and helpful responses to my queries. Overall, a top-notch product!
Barry Maguire
4.7 out of 5 stars
I couldn’t be happier with the Autel MaxiCharger 22kw AC. It was easy to install and has been working perfectly ever since. The charger is fast and reliable, which is exactly what I needed for my electric vehicle. The accompanying app is intuitive and provides all the information I need about my charging sessions. This charger is a great investment for any EV owner!
Bob Papworth
5 out of 5 stars
The Autel MaxiCharger 22kw AC is a game-changer for my electric vehicle charging needs. The high power output ensures my car is charged in no time, and the smart features are incredibly convenient. I appreciate the modern design and the sturdy construction. The customer service has been top-notch as well, making this purchase even more worthwhile. Highly recommended!
Harry James
5 out of 5 stars
I highly recommend the Autel MaxiCharger 22kw AC to anyone looking for a reliable and fast EV charger. The installation was a breeze, and the performance is outstanding. I particularly like the app, which allows me to schedule charging and track energy usage easily. The build quality is superior, and it looks great in my garage. This charger has made my EV ownership experience much more enjoyable!
Celia Smith
5 out of 5 stars
The Autel MaxiCharger 22kw AC is simply fantastic. It’s powerful, easy to use, and very efficient. My electric vehicle charges quickly, and the app provides detailed insights into each charging session. The charger is well-built and has a sleek, modern design. The support team at Autel has been very responsive and helpful. I am very pleased with this purchase and would recommend it to all EV owners!
Datasheets
Product Videos
MaxiCharger AC Ultra – Introduction
MaxiCharger AC Ultra – Demonstration
Product Comparison
General
- IP rating: IP54
- Protection: Overcurrent, overvoltage, undervoltage, integrated surge protection, PME (UK)
- Operating altitude: 2,000 m
- Operating temperature range: -40℃~+55℃
- Storage temperature range: -40℃~+55℃
- Mounting: Wall Mounted
- Dimensions (H × W × D): 625 x 320 x 170mm
Output connector
- Charging mode: Mode 3
- AC/DC: AC
- Connection: 3-Phase
- Rated power: 2*22kW/32A
- Output voltage: 400V±15%
- Output current: 2 * 22kW
- Number of outputs: 2*Sockets
- Peak efficiency: At full power ≥ 95.0%
Input connector
- Grounding system: =/- 1.0%; Build-in MID Certified meter
- Input voltage: 400V±15%, three phase
- Input frequency: 50 Hz
- Power factor: ≥0.99
- Harmonic distortion: ≤ 5%
User interface
- Screen type: 8 inch touch screen, 1280*720
- Status display: LED/LCD/APP
- Connectivity: Bluetooth, Wi-Fi, Ethernet, 4G, CAN, RS485
- Communication protocols: OCPP 1.6J (OCPP 2.0 Upgradable)
- User authentication: APP, RFID card
- User interface: OTA updates via web portal
- Software update: OTA updates via web portal
- Advertising cloud: YES
- Custom branding: NO
- Card reader: ISO 15693, ISO 14442
Certificates and standards
- Safety and compliance: IEC 61851-1, IEC 62311, IEC 62479, IEC 62955
- Certification: CE (TUV), Eichrechtskonform (Optional)
- Warranty: 36 months, warranty extension possible
General
- IP rating: IP54
- Protection: Overcurrent, overvoltage, undervoltage, integrated surge protection, PME (UK)
- Operating altitude: 2,000 m
- Operating temperature range: -40℃~+55℃
- Storage temperature range: -40℃~+55℃
- Mounting: Pedestal
- Dimensions (H × W × D): 1440 x 320 x 170mm
Output connector
- Charging mode: Mode 3
- AC/DC: AC
- Connection: 3-Phase
- Rated power: 2*22kW/32A
- Output voltage: 400V±15%
- Output current: 2 * 22kW
- Number of outputs: 2*Sockets
- Peak efficiency: At full power ≥ 95.0%
Input connector
- Grounding system: =/- 1.0%; Build-in MID Certified meter
- Input voltage: 400V±15%, three phase
- Input frequency: 50 Hz
- Power factor: ≥0.99
- Harmonic distortion: ≤ 5%
User interface
- Screen type: 8 inch touch screen, 1280*720
- Status display: LED/LCD/APP
- Connectivity: Bluetooth, Wi-Fi, Ethernet, 4G, CAN, RS485
- Communication protocols: OCPP 1.6J (OCPP 2.0 Upgradable)
- User authentication: APP, RFID card
- User interface: OTA updates via web portal
- Software update: OTA updates via web portal
- Advertising cloud: YES
- Custom branding: NO
- Card reader: ISO 15693, ISO 14442
Certificates and standards
- Safety and compliance: IEC 61851-1, IEC 62311, IEC 62479, IEC 62955
- Certification: CE (TUV), Eichrechtskonform (Optional)
- Warranty: 36 months, warranty extension possible
General
- IP rating: IP54; IK10
- Protection: Overcurrent, overvoltage, undervoltage, integrated surge protection, PME (UK)
- Operating altitude: 2,000 m
- Operating temperature range: -35℃~+55℃
- Storage temperature range: -40℃~+70℃
- Mounting: Pedestal
- Dimensions (H × W × D): 1000 x 550 x 265mm
Output connector
- Charging mode: Mode 4: CCS2
- AC/DC: DC
- Connection: Grid
- Rated power: 40kW ( max. 47kW)
- Output voltage: 150-950V
- Output current: CCS2: 133A
- Number of outputs: 2*CCS2
- Peak efficiency: At full power ≥ 96.0%
User interface
- Screen type: 21.5 inch LCD Touch Screen
- Status display: LED/LCD/APP
- Connectivity: 4G, Wi-Fi, Ethernet
- Communication protocols: OCPP 1.6J (OCPP 2.0 Upgradable)
- User authentication: APP, RFID card
- User interface: OTA updates via web portal
- Software update: OTA updates via web portal
- Advertising cloud: YES
- Custom branding: YES
- Card reader: ISO 15693, ISO 14443
Certificates and standards
- Safety and compliance: IEC 61851-1; IEC 61851-23; IEC 61851-21-2; ISO 15118
- Certification: CE, EMC Class A
- Warranty: 24 months, warranty extension possible
Input connector
- Grounding system: 3P, N, PE
- Input voltage: 3-phase 400V AC±10 %
- Input frequency: 50 Hz
- Power factor: ≥0.99
- Harmonic distortion: ≤ 5%
Product Features
- High Power Output
-
- Access to Autel’s cloud-based portal for comprehensive management.
- Seamless management of driver groups and charging schedules.
- Flexibility to offer free, discounted, or paid charging services.
- Compliance and Compatibility
-
- Fully compliant with OCPP (Open Charge Point Protocol) standards.
- User Interface
-
- Equipped with a sleek eight-inch LCD touchscreen.
- Durable Design
-
- Features a robust IP54-rated enclosure, ensuring protection against dust and water.
- Access Control
-
- Integrated RFID card reader for secure access.
- Customisable Options
-
- Credit card reader.
- Pedestal mounting option.
- Energy meters.
- Branding customization with your own logo.
- Revenue Generation
-
- Supports tailored charge rate discounts for different customer profiles.
- Enables segmentation of drivers (e.g., first-time users, loyal patrons, taxi, or ride-hailing services).
- Facilitates the monetisation of programmatic advertising.
- Cloud-Based Management
-
- Access to Autel’s cloud-based portal for comprehensive management.
- Seamless management of driver groups and charging schedules.
- Flexibility to offer free, discounted, or paid charging services.
- Versatile Applications
-
- Suitable for various locations including fleets, schools, apartment complexes, parking lots, and housing associations.
- Optional Payment System
-
- Optional Payter/Nayax payment system available for £645.
Product Specification
Below you will find an in-depth specification. Alternatively download a more detailed specification below.
General
- IP rating
- IP54
- Protection
- Overcurrent, overvoltage, undervoltage, integrated surge protection, PME (UK)
- Operating altitude
- 2,000 m
- Operating temperature range
- -40℃~+55℃
- Storage temperature range
- -40℃~+55℃
- Mounting
- Wall Mounted
- Dimensions (H × W × D)
- 625 x 320 x 170mm
Output connector
- Charging mode
- Mode 3
- AC/DC
- AC
- Connection
- 3-Phase
- Rated power
- 2*22kW/32A
- Output voltage
- 400V±15%
- Output current
- 2 * 22kW
- Number of outputs
- 2*Sockets
- Peak efficiency
- At full power ≥ 95.0%
Input connector
- Grounding system
- =/- 1.0%; Build-in MID Certified meter
- Input voltage
- 400V±15%, three phase
- Input frequency
- 50 Hz
- Power factor
- ≥0.99
- Harmonic distortion
- ≤ 5%
User interface
- Screen type
- 8 inch touch screen, 1280*720
- Status display
- LED/LCD/APP
- Connectivity
- Bluetooth, Wi-Fi, Ethernet, 4G, CAN, RS485
- Communication protocols
- OCPP 1.6J (OCPP 2.0 Upgradable)
- User authentication
- APP, RFID card
- User interface
- OTA updates via web portal
- Software update
- OTA updates via web portal
- Advertising cloud
- YES
- Custom branding
- NO
- Card reader
- ISO 15693, ISO 14442
Certificates and standards
- Safety and compliance
- IEC 61851-1, IEC 62311, IEC 62479, IEC 62955
- Certification
- CE (TUV), Eichrechtskonform (Optional)
- Warranty
- 36 months, warranty extension possible
