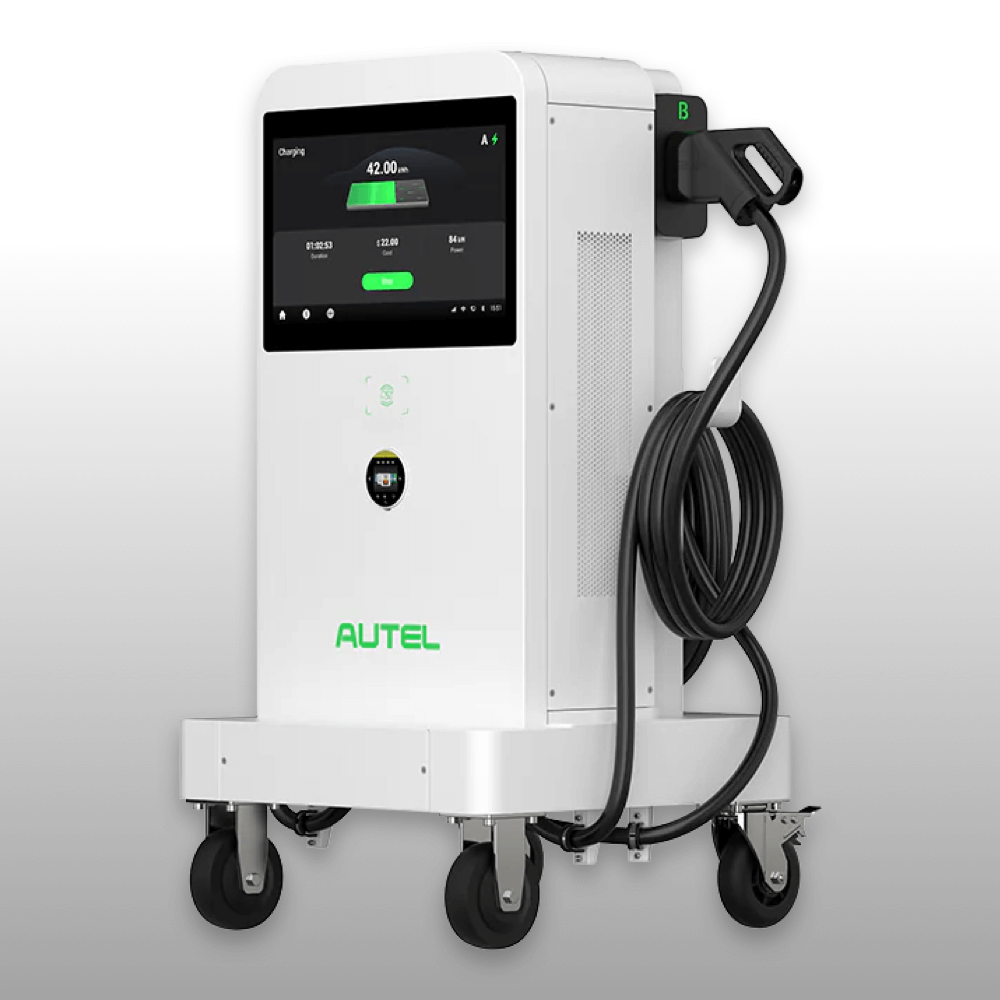

Autel MaxiCharger DC Compact 47kW - Portable
Product information
RRP: £18,495.00 excl. VAT
The following price is for the general public. In order to view installer pricing, please create an account.
Product Description
The MaxiCharger Portable offers a remarkably compact design while delivering substantial DC power in a small package.
With versatile installation options that enable both fixed and mobile positioning, the DC Compact variant serves as an excellent mobile solution for garages and automotive professionals.
Easily transport this around your workshop for fast charging on the go.
The inclusion of dual ports allows you to simultaneously charge two vehicles, providing a total power output of up to 47kW.
The Autel MaxiCharger DC Compact presents a high-speed DC charging solution in a compact design. It has been specifically crafted to meet the demands of charge point operators and businesses with high-volume charging needs.
This dependable and sturdy DC fast charger is equipped to charge all electric vehicles currently available on the market. It operates swiftly and efficiently, offering a 130km range in just 30 minutes. With dual ports, it can simultaneously charge two vehicles, delivering up to 47kW of power.
Featuring a 21.5-inch touchscreen with advertising display capabilities, it provides an opportunity for additional revenue generation.
Installation is hassle-free, and its compact design allows for flexible fixed or mobile positioning.
Reviews
4.9 out of 5 stars
Rated 4.9/5 from 4 reviews
Share your thoughts
If you’ve used this product, share your thoughts with other customers
Write a reviewRecent reviews
Edward McCarthy
5 out of 5 stars
The MaxiCharger Portable has been an absolute game-changer for our workshop. Its compact design makes it incredibly easy to move around, allowing us to provide fast charging wherever it’s needed. The dual charging ports are fantastic – we can charge two vehicles simultaneously, and the 47kW power output ensures quick turnaround times. The installation was straightforward, and the unit is robust and dependable. Highly recommended for any busy workshop.
George Smith
4.6 out of 5 stars
We’ve been using the MaxiCharger DC Compact in our garage for a few months now, and it’s exceeded all expectations. The versatility in installation options allowed us to set it up exactly how we needed, both fixed and mobile. Our mechanics love the convenience of being able to move it around the workshop. The 21.5-inch touchscreen with advertising display is a brilliant addition, providing an extra revenue stream. It’s a must-have for any professional garage.
Ben Williams
5 out of 5 stars
The MaxiCharger Portable has revolutionised our charging capabilities in the workshop. The ability to charge two vehicles at once with up to 47kW of power is incredibly efficient. We’ve noticed a significant improvement in our service speed. The compact and sturdy design is perfect for our space, and the ease of transport means we can quickly move it to wherever it’s needed. The 130km range in 30 minutes is impressive, keeping our operations running smoothly. A top-notch product.
Arthur Johnson
5 out of 5 stars
As an automotive professional, the MaxiCharger DC Compact has been a fantastic addition to our workshop. The ease of installation and flexible positioning options made setup a breeze. It’s powerful enough to handle all our charging needs, and the dual ports are a huge plus. The 21.5-inch touchscreen with advertising capabilities is a clever feature that helps generate additional income. It’s reliable, efficient, and perfect for any high-volume charging environment.
Datasheets
Product Videos
DC Compact – Introduction
DC Compact – Demonstration
DC Compact – Unboxing
DC Compact – Full Installation
Product Comparison
General
- IP rating: IP54; IK10
- Protection: Overcurrent, overvoltage, undervoltage, integrated surge protection, PME (UK)
- Operating altitude: 2,000 m
- Operating temperature range: -35℃~+55℃
- Storage temperature range: -40℃~+70℃
- Mounting: Portable Wheels
- Dimensions (H × W × D): 1000 x 550 x 265mm
Output connector
- Charging mode: Mode 4: CCS2
- AC/DC: DC
- Connection: Grid
- Rated power: 40kW ( max. 47kW)
- Output voltage: 150-950V
- Output current: CCS2: 133A
- Number of outputs: 2*CCS2
- Peak efficiency: At full power ≥ 95.0%
Input connector
- Grounding system: 3P, N, PE
- Input voltage: 3-phase 400V AC±10 %
- Input frequency: 50 Hz
- Power factor: ≥0.99
- Harmonic distortion: ≤ 5%
User interface
- Screen type: 21.5 inch LCD Touch Screen
- Status display: LED/LCD/APP
- Connectivity: 4G, Wi-Fi, Ethernet
- Communication protocols: OCPP 1.6J (OCPP 2.0 Upgradable)
- User authentication: APP, RFID card
- User interface: OTA updates via web portal
- Software update: OTA updates via web portal
- Advertising cloud: YES
- Custom branding: YES
- Card reader: ISO 15693, ISO 14443
Certificates and standards
- Safety and compliance: IEC 61851-1; IEC 61851-23; IEC 61851-21-2; ISO 15118
- Certification: CE, EMC Class A
- Warranty: 24 months, warranty extension possible
General
- IP rating: IP54; IK10
- Protection: Overcurrent, overvoltage, undervoltage, integrated surge protection, PME (UK)
- Operating altitude: 2,000 m
- Operating temperature range: -35℃~+55℃
- Storage temperature range: -40℃~+70℃
- Mounting: Wall Mounted
- Dimensions (H × W × D): 1000 x 550 x 265mm
Output connector
- Charging mode: Mode 4: CCS2
- AC/DC: DC
- Connection: Grid
- Rated power: 40kW ( max. 47kW）
- Output voltage: 150-950V
- Output current: CCS2: 133A
- Number of outputs: 2*CCS2
- Peak efficiency: At full power ≥ 96.0%
Input connector
- Grounding system: 3P, N, PE
- Input voltage: 3-phase 400V AC±10 %
- Input frequency: 50 Hz
- Power factor: ≥0.99
- Harmonic distortion: ≤ 5%
User interface
- Screen type: 21.5 inch LCD Touch Screen
- Status display: LED/LCD/APP
- Connectivity: 4G, Wi-Fi, Ethernet
- Communication protocols: OCPP 1.6J (OCPP 2.0 Upgradable)
- User authentication: APP, RFID card
- User interface: OTA updates via web portal
- Software update: OTA updates via web portal
- Advertising cloud: YES
- Custom branding: YES
- Card reader: ISO 15693, ISO 14443
Certificates and standards
- Safety and compliance: IEC 61851-1; IEC 61851-23; IEC 61851-21-2; ISO 15118
- Certification: CE, EMC Class A
- Warranty: 24 months, warranty extension possible
General
- IP rating: IP54; IK10
- Protection: Overcurrent, overvoltage, undervoltage, integrated surge protection, PME (UK)
- Operating altitude: 2,000 m
- Operating temperature range: -35℃~+55℃
- Storage temperature range: -40℃~+70℃
- Mounting: Pedestal
- Dimensions (H × W × D): 1000 x 550 x 265mm
Output connector
- Charging mode: Mode 4: CCS2
- AC/DC: DC
- Connection: Grid
- Rated power: 40kW ( max. 47kW)
- Output voltage: 150-950V
- Output current: CCS2: 133A
- Number of outputs: 2*CCS2
- Peak efficiency: At full power ≥ 96.0%
User interface
- Screen type: 21.5 inch LCD Touch Screen
- Status display: LED/LCD/APP
- Connectivity: 4G, Wi-Fi, Ethernet
- Communication protocols: OCPP 1.6J (OCPP 2.0 Upgradable)
- User authentication: APP, RFID card
- User interface: OTA updates via web portal
- Software update: OTA updates via web portal
- Advertising cloud: YES
- Custom branding: YES
- Card reader: ISO 15693, ISO 14443
Certificates and standards
- Safety and compliance: IEC 61851-1; IEC 61851-23; IEC 61851-21-2; ISO 15118
- Certification: CE, EMC Class A
- Warranty: 24 months, warranty extension possible
Input connector
- Grounding system: 3P, N, PE
- Input voltage: 3-phase 400V AC±10 %
- Input frequency: 50 Hz
- Power factor: ≥0.99
- Harmonic distortion: ≤ 5%
Product Features
- Compact Design
-
- Remarkably compact and portable.
- Small package delivering substantial DC power.
- Versatile Installation Options
-
- Fixed and mobile positioning.
- Ideal for garages and automotive professionals.
- Mobility
-
- Easily transportable around workshops for fast charging on the go.
- Dual Charging Ports
-
- Simultaneously charge two vehicles.
- Total power output up to 47kW.
- High-Speed DC Charging
-
- Provides a 130km range in just 30 minutes.
- Suitable for all electric vehicles currently available on the market.
- 21.5-Inch Touchscreen
-
- Equipped with advertising display capabilities.
- Potential for additional revenue generation.
- Business and High-Volume Charging
-
- Designed to meet the demands of charge point operators.
- Caters to businesses with high-volume charging needs.
- Dependability and Sturdiness
-
- Robust and reliable DC fast charger.
- Ease of Installation
-
- Hassle-free installation process.
- Flexible positioning for both fixed and mobile setups.
Product Specification
Below you will find an in-depth specification. Alternatively download a more detailed specification below.
General
- IP rating
- IP54; IK10
- Protection
- Overcurrent, overvoltage, undervoltage, integrated surge protection, PME (UK)
- Operating altitude
- 2,000 m
- Operating temperature range
- -35℃~+55℃
- Storage temperature range
- -40℃~+70℃
- Mounting
- Portable Wheels
- Dimensions (H × W × D)
- 1000 x 550 x 265mm
Output connector
- Charging mode
- Mode 4: CCS2
- AC/DC
- DC
- Connection
- Grid
- Rated power
- 40kW ( max. 47kW)
- Output voltage
- 150-950V
- Output current
- CCS2: 133A
- Number of outputs
- 2*CCS2
- Peak efficiency
- At full power ≥ 95.0%
Input connector
- Grounding system
- 3P, N, PE
- Input voltage
- 3-phase 400V AC±10 %
- Input frequency
- 50 Hz
- Power factor
- ≥0.99
- Harmonic distortion
- ≤ 5%
User interface
- Screen type
- 21.5 inch LCD Touch Screen
- Status display
- LED/LCD/APP
- Connectivity
- 4G, Wi-Fi, Ethernet
- Communication protocols
- OCPP 1.6J (OCPP 2.0 Upgradable)
- User authentication
- APP, RFID card
- User interface
- OTA updates via web portal
- Software update
- OTA updates via web portal
- Advertising cloud
- YES
- Custom branding
- YES
- Card reader
- ISO 15693, ISO 14443
Certificates and standards
- Safety and compliance
- IEC 61851-1; IEC 61851-23; IEC 61851-21-2; ISO 15118
- Certification
- CE, EMC Class A
- Warranty
- 24 months, warranty extension possible
